Specifications & Performance

Fire Boss Performance

See the Fire Boss scooping mechanism and fire gate in action!



Water Delivery Rate

Distance between fire and water source

Average turnaround time

Water delivered to fire per hour

In US Miles / km

In Minutes

In US Gallons / Liters

1 mi / 1.6 km

3

14,00 USG / 52,996 L

5 mi / 8.0 km

4

10,500 USG / 39,747 L

10 mi / 16.1 km

6

7,000 USG / 26,498 L

15 mi / 24.1 km

9

4,666 USG / 17,663 L

20 mi / 32.2 km

11

3,818 USG / 14,453 L

This chart shows the gallons of water the Fire Boss is able to deliver to a fire based on the distance between the fire and the nearest scoopable water source. It assumes that the Fire Boss has 2.5 hours of fuel endurance including a 30-minute reserve (U.S. Fire Agency Minimum Requirement). It also assumes scooping loads begin at approximately 600 gallons and approach 800 gallons as fuel burns and that no foam is carried onboard.

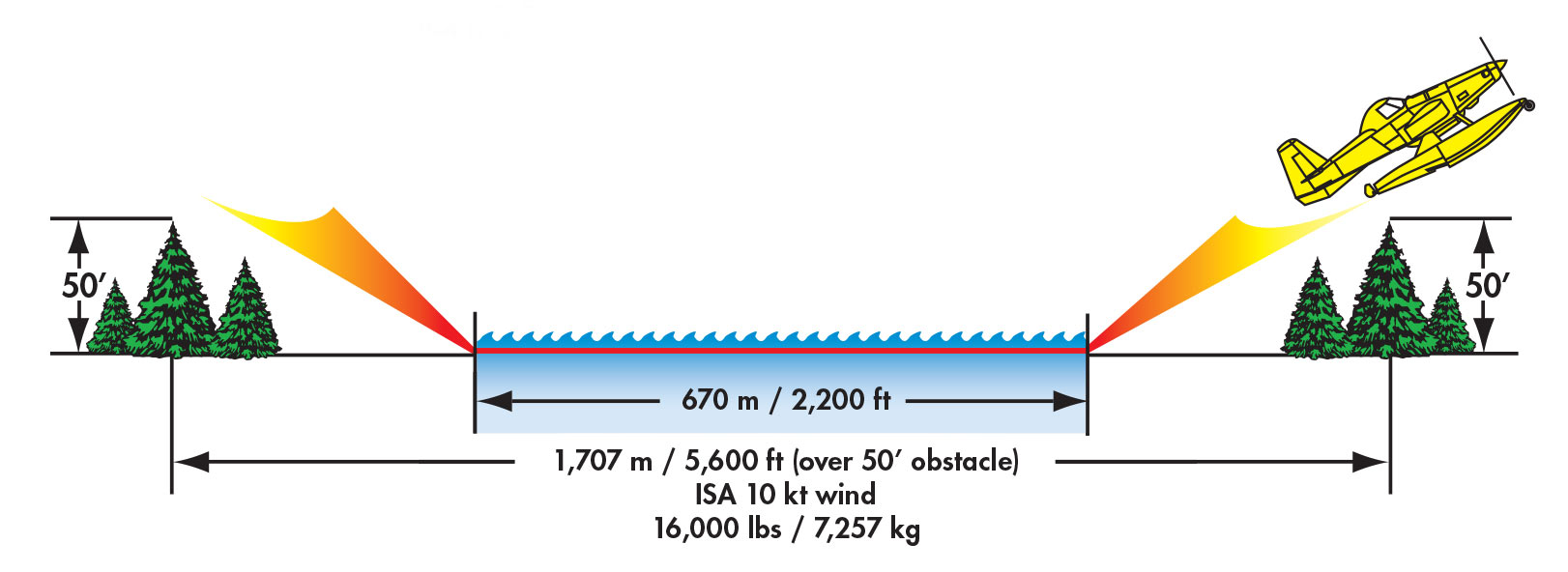

Take-off Run for Water Operation

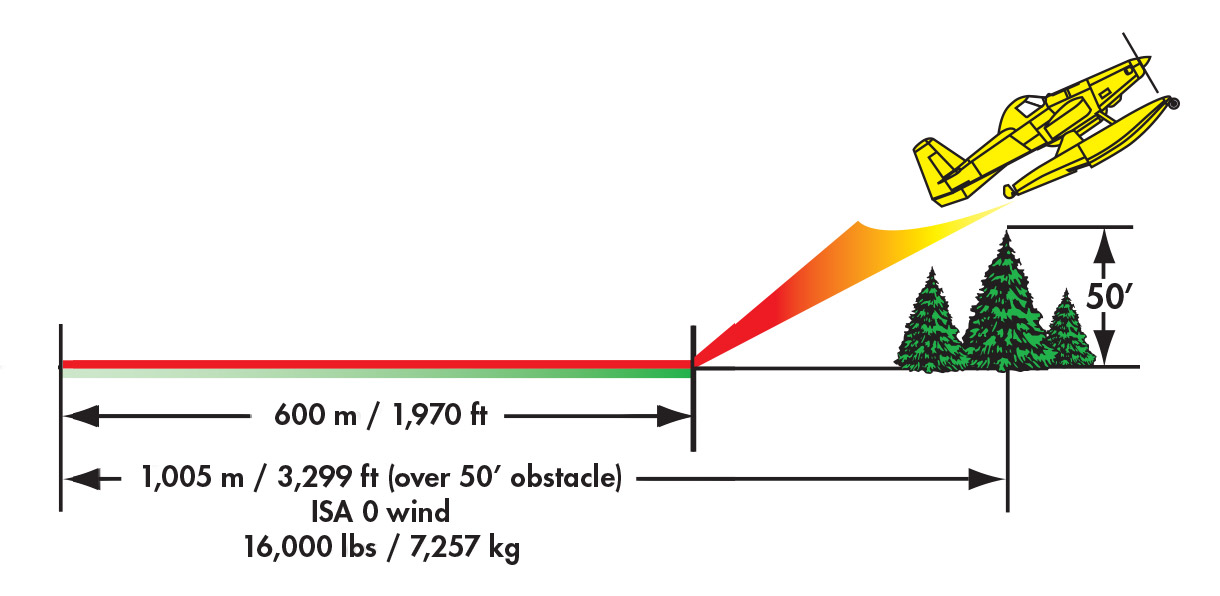

Take-Off Run for Land OPeration

Aircraft Flight Manual Supplement performance data for both the 1,600 hp Single Seat and 1,600 hp Dual Seat aircraft were based on flight test results accumulated during the certification program for the 1,600 hp Dual Seat aircraft only. Operational experience has shown that the performance for the 1,600 hp Single Seat aircraft is superior to both the 1,600 hp Dual Seat and the 1,350 hp Single Seat aircraft.

Specifications

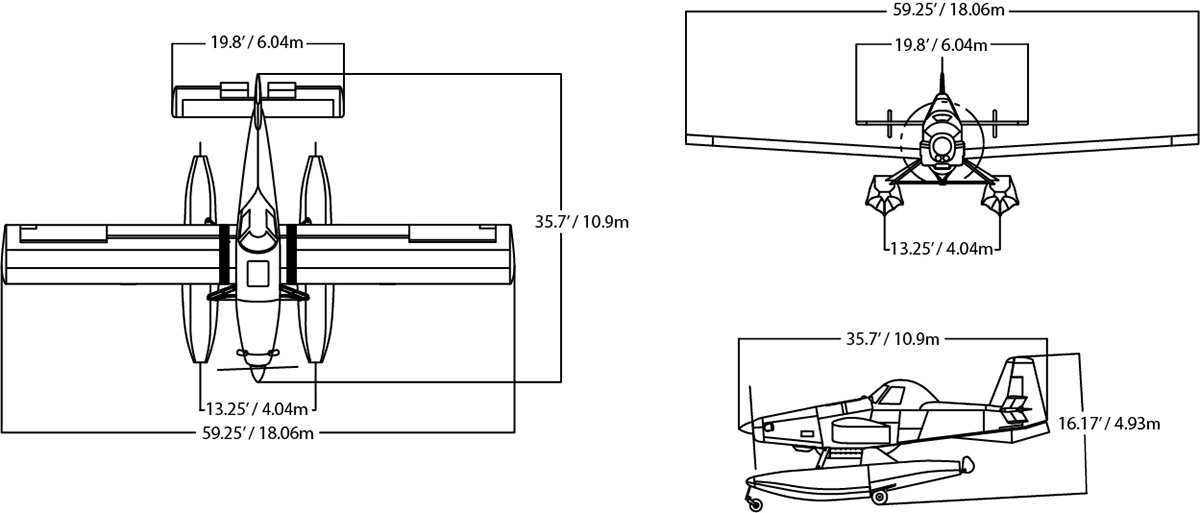

Dimensions

Specifications

Engine PT6AG-67AG 1350HP / PT6A-67F 1600 HP
Prop Hartzell 5-Blade c/s Reversing
Floats Wipline Model 10000 Amphibious
Water Tank Capacity 800 USG / 3028.3 L
Fuselage Foam Tank Capacity 18 USG / 68 L
Float Foam Tank Capacity 30 USG / 114 L
Total Foam Capacity 78 USG / 296 L
Foam Transfer System Automatic / Manual
Over-Temp/Torque Warning Visual and Aural
Hopper Quantity Pre-Select System Automatic/Manual
Gross Weight (take-off only) 16,000 lb / 7,257 kg
Maximum Landing Weight 11,500 lb / 5,216 kg
Approximate Empty Weight 8,300 – 8,600 lb / 3,765 – 3,900 kg
Approximate Useful Load 7,400 – 7,700 lb / 3,357 – 3,493 kg
Max Cruise Speed 150 KIAS / 172.6 mph / 277.8 kph
Stall Speed (VS10º 16,000 lb.) 75 KCAS / 86 mph / 139 kph
VSO 16,000 lb. 72 KCAS / 82.8 mph / 133.3 kph
Rate of Climb 892 ft/min / 272 m/min

The AT-802F’s computerized Pilot Interface System allows the pilot to select coverage levels ranging from .5 gallons to 4 gallons per 100 sq. ft., with coverage level 6.0 possible in salvo drops.
