Amphibious AT-802F Scooping Single Engine Air Tanker

About the Fire Boss

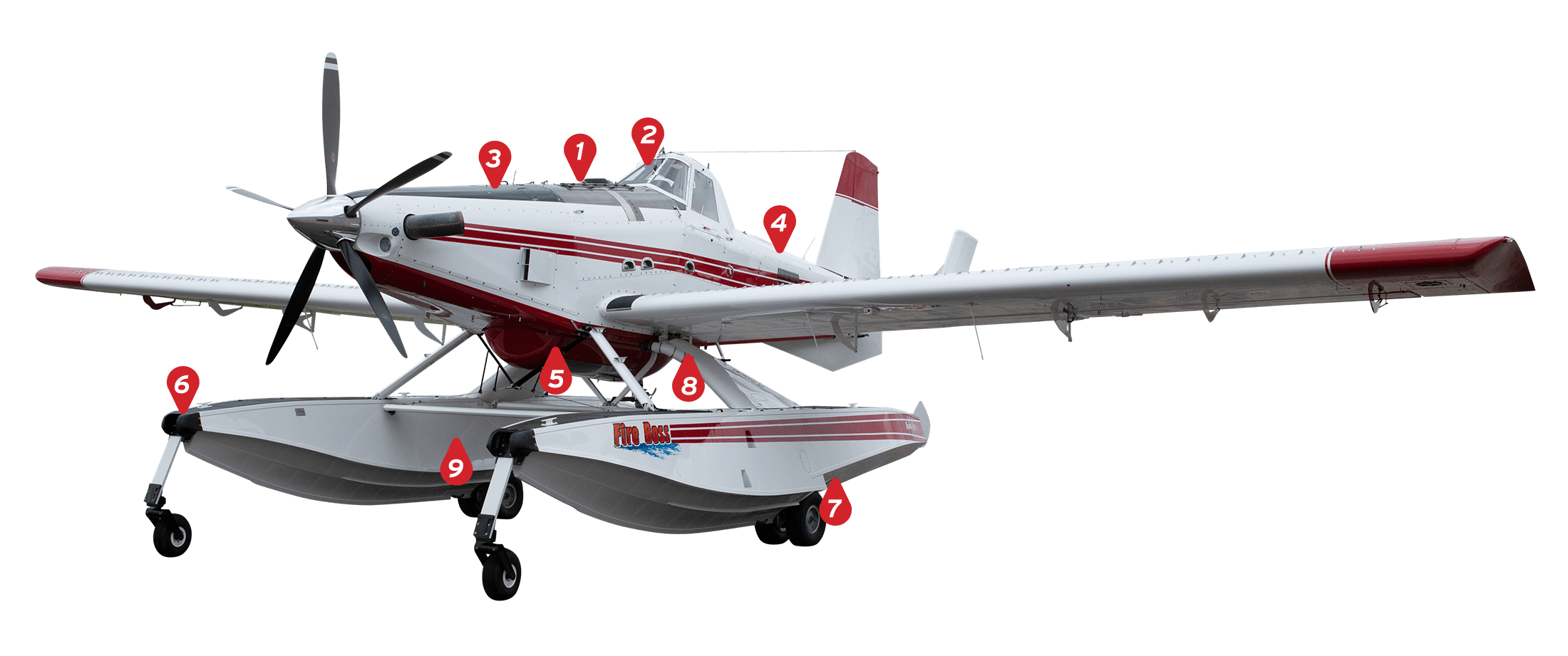

Configuration

1. WATER & FOAM TANKS
820 USG (3,104L) water capacity plus up to 78 USG (296 L) foam capacity
2. Safe Instrumentation

The scooping control panel is located so the pilot’s attention is maintained at windscreen level during critical operation phases.

3. Pratt & Whitney 1,600 hp PT6A-67F Engine

The turbine PT6A-67F boasts legendary reliability, fast start-up with no warm-up period, 150 knots cruise speed, and exceptional performance with the ability to quickly climb to high mountain elevations and execute aggressive down-slope drops.

4. The Airframe

A rugged aircraft built with confined area operations and maneuverability in mind. The AT-802F has been purpose built and FAA-certificated for aerial firefighting. It can be refitted with conventional landing gear in the off season to perform additional missions.

Single-Seat & Two-Seat Trainer Models Available

5. FIRE GATE

The fire gate controls the rate and volume of water release. It allows the pilot to perform accurate salvo or string drops.

Fire gate options include:

  • Air Tractor Gen II FRDS (Factory Standard)
  • Hydramax Fire Gate
  • Hatfield Fire Gate

Wipline 10000 Amphibious Floats

6. Retractable Landing Gear

Rugged amphibious versatility for runway, gravel or water take-offs and landings

7. High Efficiency water Scoops

Simple, easy to maintain, and effective. The scoops are designed to be safely deployed at landing speeds

8. WATER TRANSFER TUBE

Moves the scooped water up the float pylon and into the fuselage holding tank.

options foam tanks
9. Removable Foam Tanks

Optional removable tanks slip inside the floats and add up to 60 USG (226 L) foam capacity to the 18 USG (69 L) fuselage foam tanks

Specifications

Standard Equipment

  • Air Tractor AT-802F or AT-802AF
  • PT6A-67AG 1.350 HP or PT6A-67F 1,600 HP engine
  • Hartzell 5-Blade c/s reversing 115” or 19” (291.1 cm or 302.2 cm) propeller
  • Fuselage foam tank 18 USG/68 L
  • Auto / manual foam transfer system
  • Wipline® 10000 series amphibious floats
  • Normal and emergency landing gear retraction system
  • Landing gear advisory system
  • Two retractable water scooping probes
  • Auto/manual hopper quantity pre-select (Operational Load Monitoring System)
  • Higher capacity hopper venting system
  • Emergency hopper overflow system
  • Float emergency bilge system
  • Visual and aural engine over-torque warning system
  • Water scooping probe advisory system
  • Electronically controlled retractable water rudders
  • Single water/retardant ground-loading port
  • Stall improvement array kit (vortex generators)
  • Finlets & ventral fin
  • Flow generators (2-seat aircraft installation)
  • Ballast management system (2-seat aircraft installation)
  • Hardware for 1,600 SHP Pratt & Whitney PT6A-67F engine installation

Optional Equipment

  • 1,600 SHP PT6A-67F engine upgrade kit
  • Rear cockpit trainer kit for AT-802 2-seat
  • Float conversion kit for 2-seat aircraft
  • Additional 30 gallon /113 liter foam tank
  • AT-802A or AT-802 landplane stall improvement array

Performance

Gross Takeoff Weight (Land)16,000 lbs // 7,257 kg
Gross Takeoff Weight (Water)11,500 lbs // 5,216 kg
Maximum Landing Weight (Land)12,300 lbs // 5,579 kg
Maximum Scooping Weight16,000 lbs // 7,257 kg
Maximum Landing Weight (Water) –  Full Stop11,500 lbs // 5,216 kg
Land Take-Off Run (see page 5 for diagram)1,970 ft // 600 m
Land Take-Off Over 50 ft Obstacle3,299 ft // 1,005 m
Water Take-Off or Scooping Run (see page 7 for diagram)2,200 ft // 670 m
Water Take-Off or Scooping Run Over 50 ft Obstacle5,600 ft // 1,707 m
Approximate Empty Weight8,900-9,100 lbs // 4,037-4,128 kg
Approximate Useful Load6,800-7,100 lbs // 3,084-3,221 kg
Max Cruise Speed At 16,000 lbs / 7,257 kg150 KIAS
VS (16,000 lbs / 7,257 kg – 10° Flap)75 KCAS
VS (16,000 lbs / 7,257 kg – 30° Flap)72 KCAS
Rate of Climb At 16,000 lbs / 7,257 kg892 ft/min // 272 m/min

Water Delivery Based on Distance From WAter Source

Distance between fire and water source (in US Miles) Average turnaround time (in Minutes) Water delivered to fire per hour (in US Gallons)
1 3 14,000
5 4 10,500
10 6 7,000
15 9 4,666
20 11 3,818
This chart shows the gallons of water the Fire Boss is able to deliver to a fire based on the distance between the fire and the nearest scoopable water source. It assumes that the Fire Boss has 2.5 hours of fuel endurance including a 30-minute reserve (U.S. Fire Agency Minimum Requirement). It also assumes scooping loads begin at approximately 600 gallons and approach 820 gallons as fuel burns and that no foam is carried onboard.

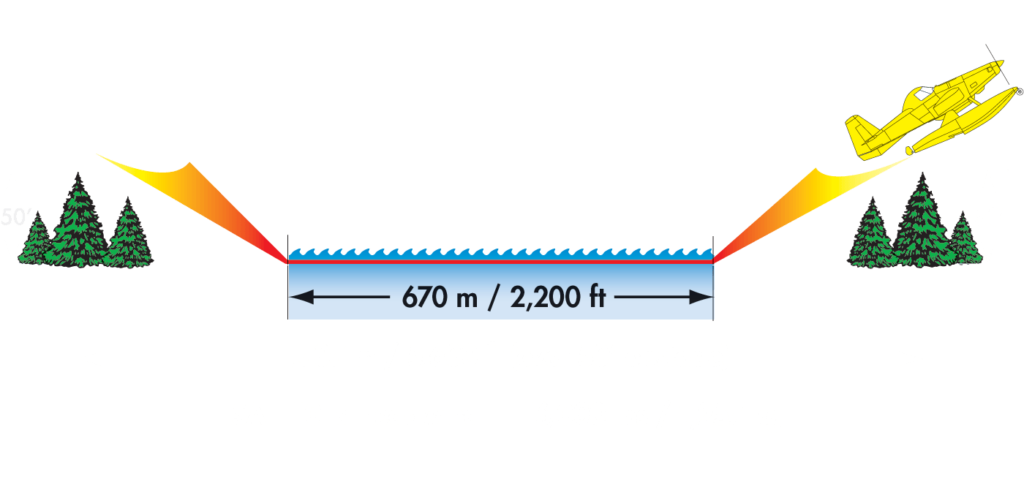

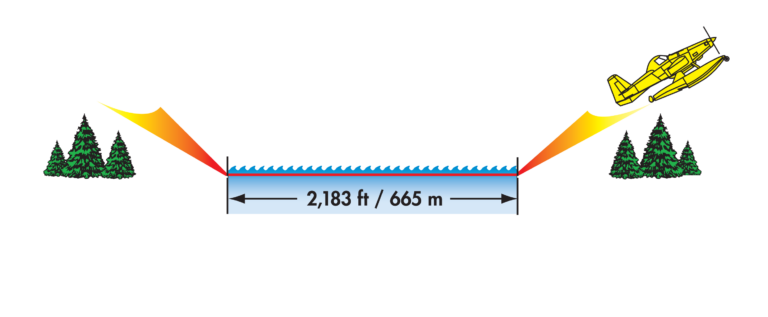

Water Take-Off Run

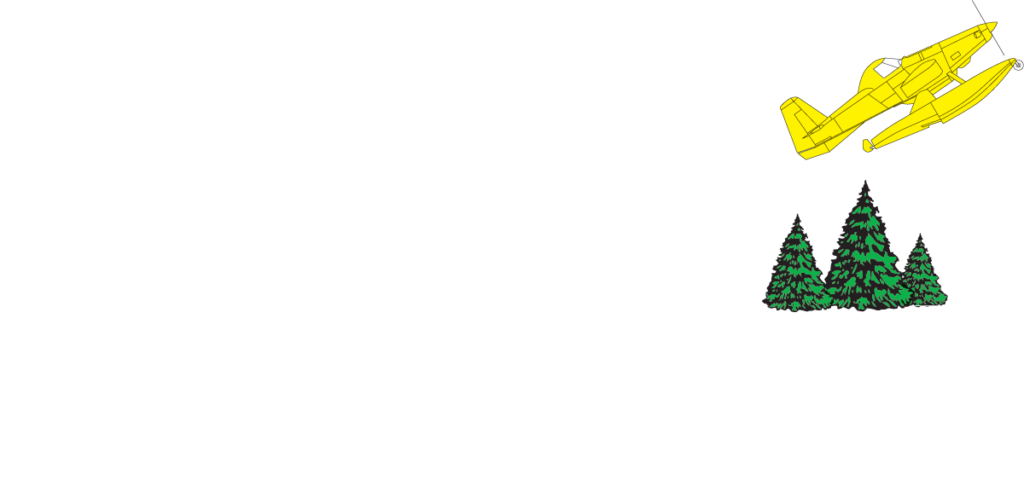

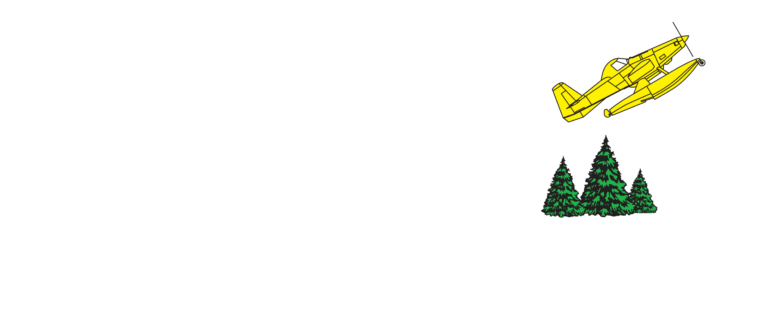

Land Take-Off Run
